KRM 143 Hoist

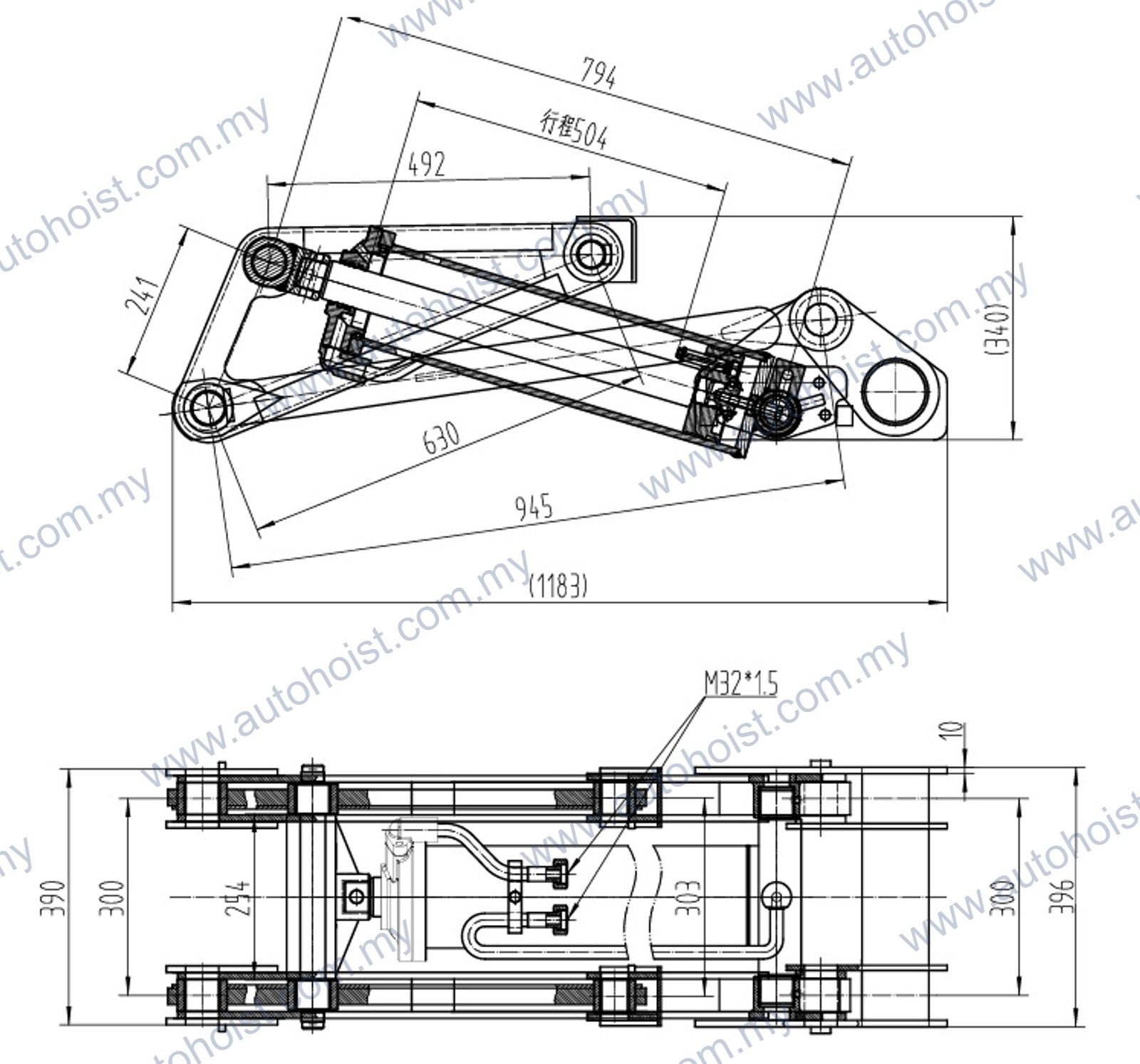

Specifications
| Model | KRM 143 |
| Size (mm) | 1193 x 410 x 341 |
| Cylinder Length (mm) | 620 |
| Cylinder Diameter (mm) | 140 |
| Rod Shaft Diameter (mm) | 60 |
| Cylinder Stroke (mm) | 504 |
| Design Lifting Capacity (kg) | 5000-7000 |
| Recommended Body Length (mm) | 4000-4500 |
| Recommended Truck G.V.W (kg) | 5000-7500 |
Description

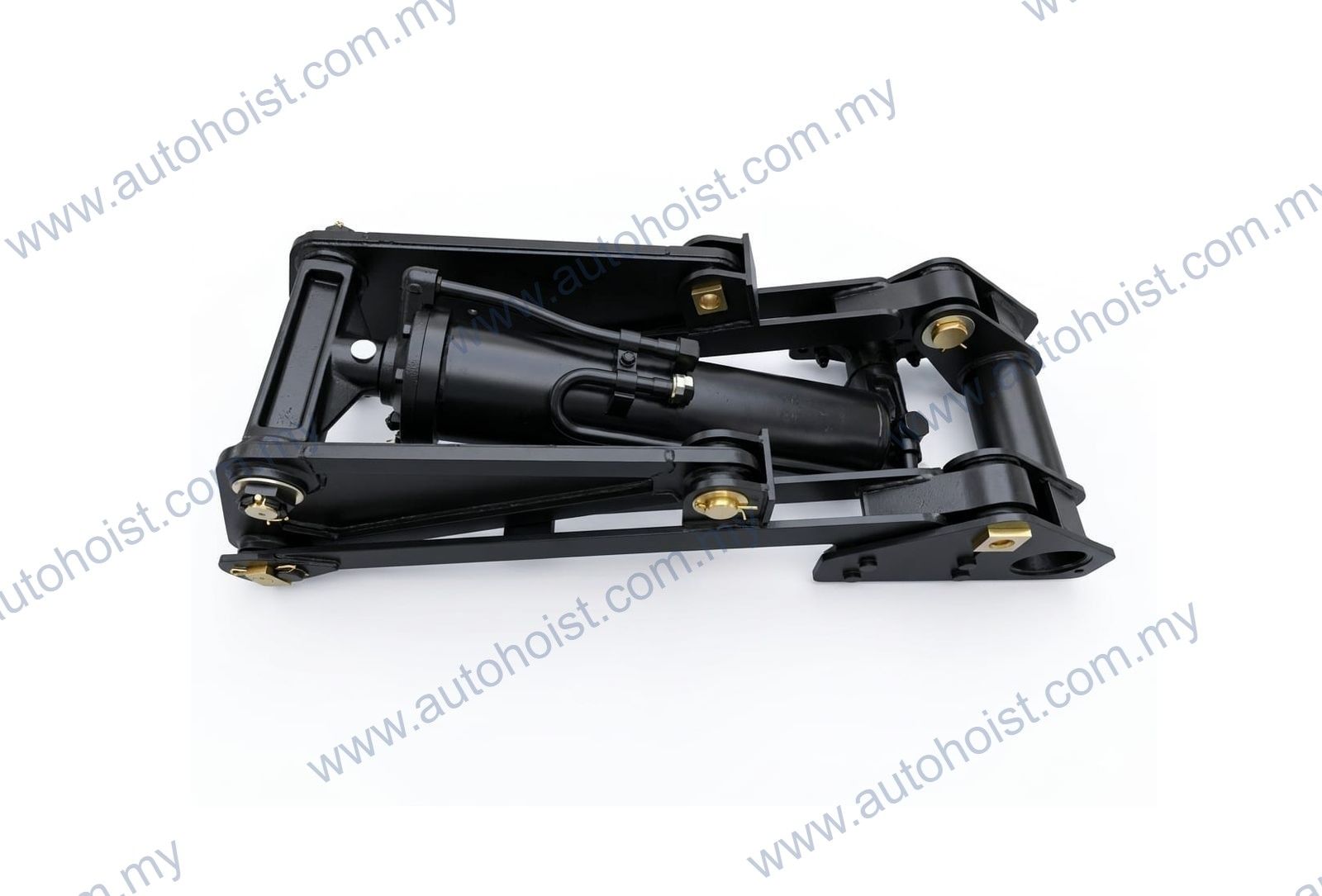

The KRM 143 Hoist by Auto & Hoist Sdn Bhd is engineered for professional truck body builders and fleet managers requiring durable tipping performance. This robust hydraulic hoist features a cylinder length of 620 mm, a cylinder inner diameter of 140 mm, rod shaft of 60 mm and a cylinder stroke of 504 mm, ensuring reliable operation under precise technical specifications.
Designed with a rated capacity of 3 tons and a maximum design capacity of 7 tons, this Hoist is highly recommended for vehicles with a Gross Vehicle Weight (GVW) of 5 to 7.5 tons. It serves as an ideal tipping solution for recommended truck body lengths ranging between 4 to 4.5 meters.
Frequently Asked Questions
What is the capacity rating of the KRM 143 Hoist?
The KRM 143 Hoist has a rated capacity of 3 tons and a maximum design capacity of 7 tons.
What are the physical dimensions of the cylinder in KRM143 Hoist?
The hydraulic cylinder of KRM 143 HOIST features a length of 620 mm, a diameter of 140 mm, a rod shaft 60mm and a stroke of 503 mm.
Which truck sizes are recommended for KRM 143 Hoist?
KRM 143 HOIST s recommended for trucks with a Gross Vehicle Weight (GVW) of 5000 to 7500 kg and a recommended body length of 4000 to 4500 mm.
Where can buy KRM 143 hoist in Malaysia?
We can purchase KRM 143 HOIST from AUTO & HOIST SDN BHD in BATU CAVES SELANGOR, a leading Malaysian supplier of hydraulic system and truck parts.
