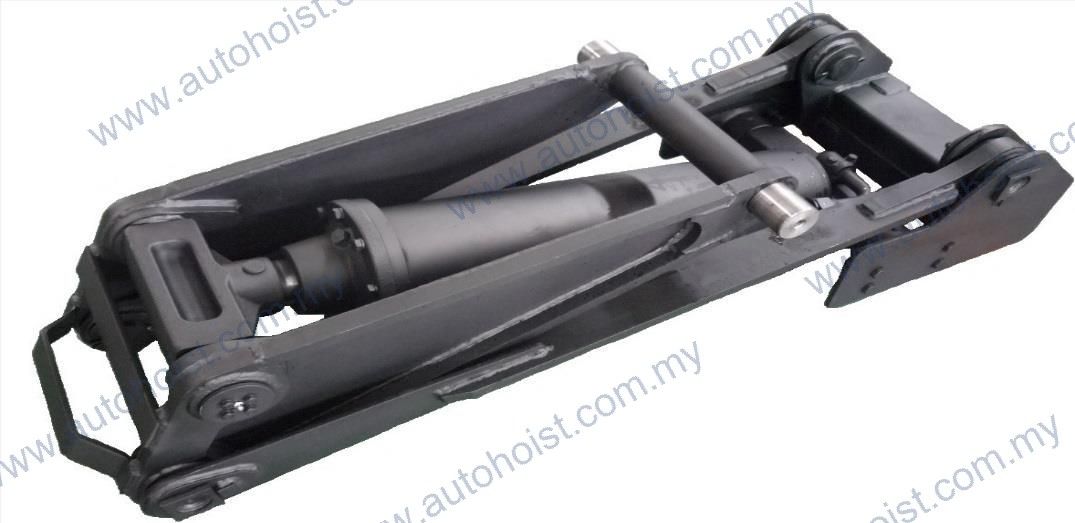

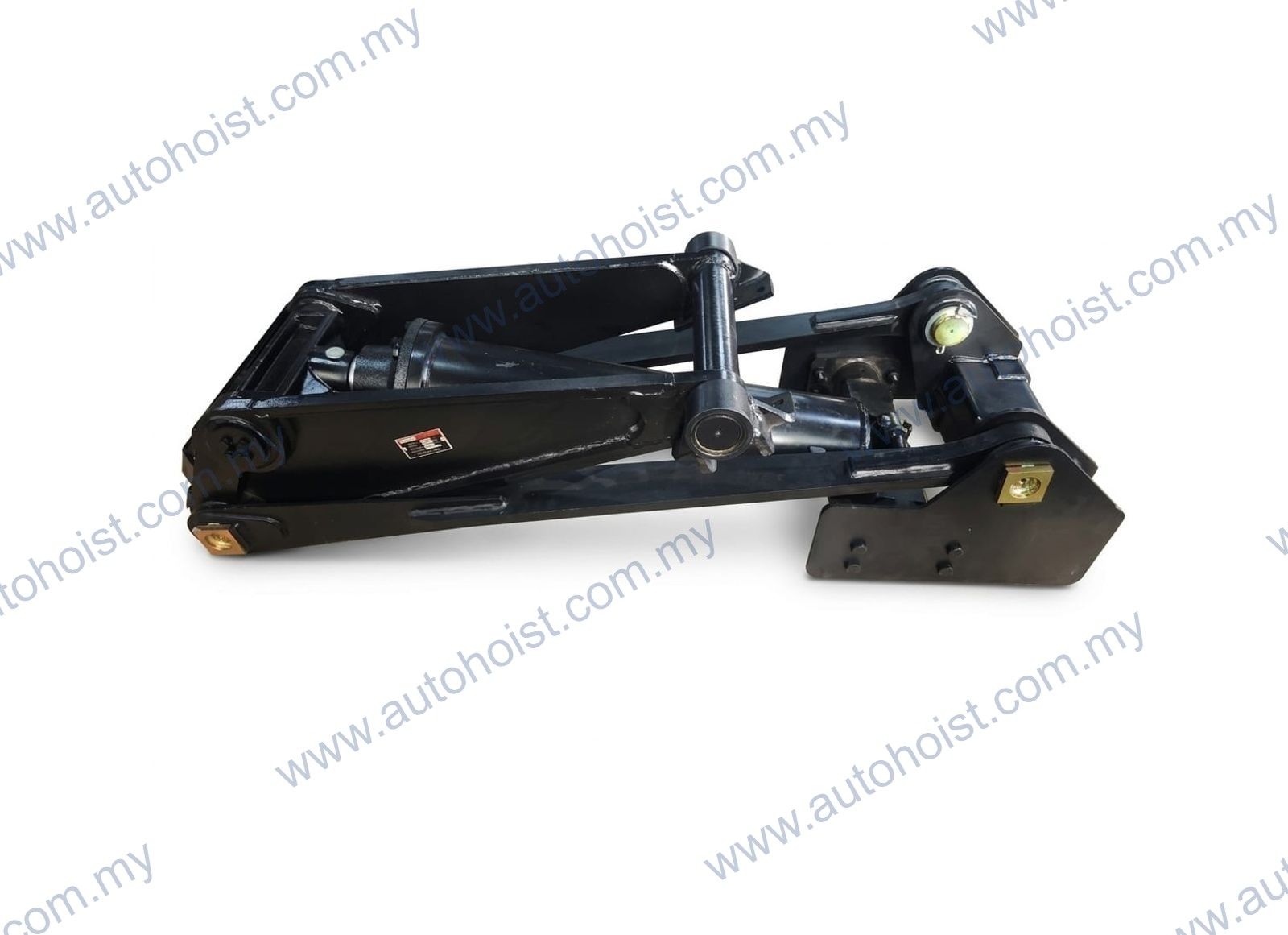

KRM 160S Hoist
Specifications
| Model | KRM 160S |
| Size (mm) | 1434 x 500 x 360 |
| Cylinder Length (mm) | 740 |
| Cylinder Diameter (mm) | 160 |
| Rod Shaft Diameter (mm) | 80 |
| Cylinder Stroke (mm) | 560 |
| Design Lifting Capacity (kg) | 7000-10000 |
| Recommended Body Length (mm) | 4200-4800 |
| Recommended Truck G.V.W (kg) | 7500-11000 |
Description
The KRM 160S Hoist by Auto & Hoist Sdn Bhd is engineered for professional truck body builders and fleet managers requiring durable tipping performance. This robust hydraulic hoist features a cylinder length of 740 mm, a cylinder inner diameter of 160 mm, rod shaft of 80 mm and a cylinder stroke of 560 mm, ensuring reliable operation under precise technical specifications.
Designed with a rated capacity of 6 tons and a maximum design capacity of 10 tons, this Hoist is highly recommended for vehicles with a Gross Vehicle Weight (GVW) of 7.5 to 11 tons. It serves as an ideal tipping solution for recommended truck body lengths ranging between 4.2 to 4.8 meters.
Frequently Asked Questions
What is the capacity rating of the KRM 160S Hoist?
The KRM 160S Hoist has a rated capacity of 6 tons and a maximum design capacity of 10 tons.
What are the physical dimensions of the cylinder in KRM 160S Hoist?
The hydraulic cylinder of KRM 160S HOIST features a length of 740 mm, a diameter of 160 mm, a rod shaft 80mm and a stroke of 560 mm.
Which truck sizes are recommended for KRM 160S Hoist?
KRM 160S HOIST s recommended for trucks with a Gross Vehicle Weight (GVW) of 5000 to 7500 kg and a recommended body length of 4000 to 4500 mm.
Where can buy KRM 160S hoist in Malaysia?
We can purchase KRM 160 HOIST from AUTO & HOIST SDN BHD in BATU CAVES SELANGOR, a leading Malaysian supplier of hydraulic system and truck parts.
